Murphy PV25 PowerView PV25显示诊断器
Murphy PowerView 25 Engine and Diagnostic Display

Murphy PV25是一个小巧而经济的发动机诊断显示器, 它可以显示电控发动机的运行参数及故障代码,安装简单,适合在恶劣环境下使用。PV25可由12V或24V系统供电,操作人员可通过面板上的两个按钮对PV25进行快捷设置。 带背光的显示器以及两个高亮度的LED灯可有效地显示一般故障报警或停机故障报警。 PV25显示发动机实时故障和历史故障的形式为SPN,FMI 和OC,采用的是SAEJ1939 CAN通讯协议,可以显示多达20个参数,显示单位可选英制或公制。


Murphy PV25可编辑显示器 显示屏
Murphy PowerView 25 Engine and Diagnostic Display

PDF Catalog


以下是部分PV25可显示的发动机参数:

发动机转速
冷却液温度
发动机机油压力
四阶段或欧IIIB排放参数
发动机小时数
实时故障代码
系统电压
历史故障代码





POWERVIEW Model PV25 Display规格参数:

四阶段或欧IIIB排放兼容
工作电压:6 - 36VDC
工作电流: 12 V供电系统中高460mA
24 V供电系统中高810mA
极性反接保护:可承受电池极性反接
环境规格
工作温度: -40 ~ 70°C (-40°~ 158°F)
存储温度: -55 ~ 85°C (-67°~ 185°F )
防护等级: IP68
CAN通讯协议: SAE J1939
连接器:
4针 AMP“Mini-universal Mate-N-Lok”插接件
AMP插头零件号:172338-1
AMP插针零件号:171639-1 (4针)
安装面板大厚度: 3/8英寸(9.6毫米)
装运重量(所有型号): 0.2磅(0.1公斤)
装运尺寸(所有型号): 3-7/8 x 2-3/4 x2-3/4 英寸
(98.4 x 69.85 x 69.85毫米)

可选边框
两种边框样式可选,材质均为ABS。

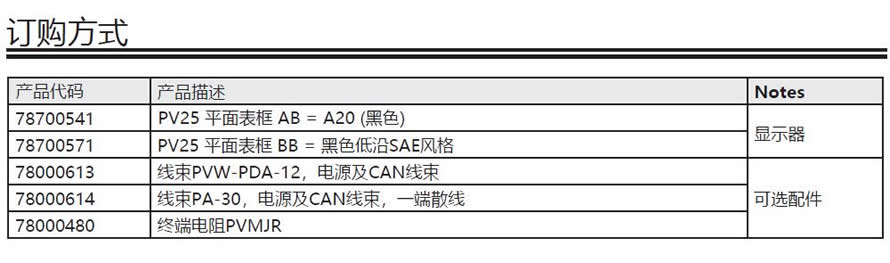

POWERVIEW Model PV25 Display订购方式

产品代码 产品描述 Notes
78700541 PV25 平面表框 AB = A20 (黑色)
显示器
78700571 PV25 平面表框 BB = 黑色低沿SAE风格
78000613 线束PVW-PDA-12,电源及CAN线束
7800061 可选配件 4 线束PA-30,电源及CAN线束,一端散线
78000480 终端电阻PVMJR
PV25 边框选项
AB 黑框,A20风格 BB 黑色低沿SAE风格

- PowerView 25 engine and diagnostic display
Part Number Model/Description Notes

Part Number Model/Description Notes
78700541 PV25 Bezel type (flat lens) AB = A20 (Black) Displays
78700571 PV25 Bezel type (flat lens) BB = Low Profile SAE (Black) Displays
78000613 Wiring Harness PVW-PDA-12 PowerView 10 CAN & Power Accessories
78000614 Wiring Harness PA-30View 10 Loose Wiring Accessories
78000480 Terminating Resistor, PVMJRm Accessories



PowerView 25 is an engine and diagnostic display in an economical, compact package.This J1939-compliant device provides electronic engine parameter data, is simple to install, matches the PowerView line of rugged displays and can be powered by 12-volt or 24-volt systems. The PV25 is equipped with two push buttons to quickly access a convenient menu. In addition, a back-lit graphic display and two LEDs indicate Active-fault Alarm or Shutdown status. Active and Stored Fault messages display the SPN (Suspect Parameter Number), FMI (Failure Mode Indicator) and the OC (Occurrence Count) using the SAE J1939 protocol. The PV25 displays up to 20 standard J1939 parameters in standard or metric units.

The PV25 is equipped with two push buttons to quickly access a convenient menu. In addition, a back-lit graphic display and two LEDs indicate Active-fault Alarm or Shutdown status.

Active and Stored Fault messages display the SPN (Suspect Parameter Number), FMI (Failure Mode Indicator) and the OC (Occurrence Count) using the SAE J1939 protocol.

The PV25 displays up to 20 standard J1939 parameters in standard or metric units. The following are some of the engine parameters of the PV25 displays:

Engine RPM
Engine Oil Pressure
Engine Hours
Coolant Temperature
ITA/Stage IIIB Parameters
Active Service Codes
System Voltage
Stored Service Codes

Tier 4 / Stage IIIB/IV Compliant Ready
Operating Voltage: 6 VDC minimum to 36 VDC maximum
Power Supply Operating Current:
460mA max @ 12 VDC
810mA max @ 24 VDC
Reversed Polarity: Withstands reversed battery terminal polarity
Environmental

Operating Temperature: -40° to 158°F (-40 to 70°C)
Storage Temperature: -67° to 185°F (-55 to 85°C)
Sealing: IP68
CAN Bus: SAE J1939 compliant
Connectors

4-pin AMP Mini-universal Mate-N-Lok Connector
AMP Plug: P/N 172338-1
AMP Socket: P/N 171639-1 (4 each, assumes 18 gage wire. See
AMP Plug specification to match socket and wire size.)
Maximum Panel Thickness: 3/8 inch (9.6 mm)
Shipping Weight: (all models) 0.2 lb. (0.1 kg)
Shipping Dimensions: (all models)
3-7/8 x 2-3/4 x 2-3/4 in.
(98.4 x 69.85 x 69.85 mm)



For more information about this product, you can download the related literature here:
PDF Catalog技术资料下载:

- Sales Bulletin (1110920; revision date - 09/2014)
- Installation Instructions (00-02-0839; revision date – 09/2012)
- Installation Instructions - Spanish (00-02-0839-SP; revision date – 09/2012)
- PV25 Wiring Harness Diagram (1211194; revision - date 07/2013)
Tier 4 Overview (1110836; revision - date 11/2014)
