Murphy PV780B显示屏 显示器 - 屏幕1000-nit 7-inch screen
Murphy PowerView 780B Display
with Bluetooth and Wi-Fi



新款PV780B带有的7英寸显示屏可显示明亮生动的图形,同时配备高速处理器,并提供客户期望的PowerView系列HMI产品所具有的同样坚固的可靠性。可提供手套触摸有效的触摸屏以及在ZUI苛刻的条件下无与伦比的性能,PV780B是OEM和集成商寻求的为操作者提供ZUI佳设备体验的ZUI优选择。全功能,可配置的显示屏将引擎,传动系统信息集成到易于阅读的操作界面中。即使在阳光直射的情况下,也可以轻松观看1000nit ,7英寸的屏幕。领先的液晶粘帖技术和坚固的设计使其成为各种环境和应用的完美解决方案。

通过使用PowerVision ConfigurationStudio软件进行图形化编程或编写脚本,可以快速完成显示器的自定义。

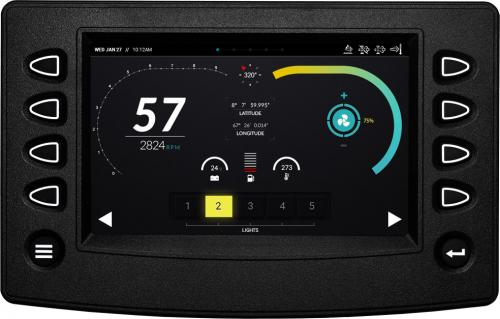

Murphy PowerView 780B Display
显示屏 显示器
1000-nit 7-inch screen



强大的功能 更好的用户体验

- 视频播放功能的新型高速处理器
- 两倍于PV780的闪存
- 丰富全彩色图形的CAN基础的显示屏
- 兼容机械和电控发动机
- 无眩光键合LCD
- 阳光下可视

性能参数:

- Added connectivity with Bluetooth and Wi-Fi
- Boasts faster processor and more memory
- CAN-based display with rich, full-color graphics
- Compatible with mechanical and electronic engines
- Bonded glare-free LCD screen
- Superior visibility even in sunlight
- Pending Q3 Release

The PowerView 780B offers all the features of Murphy's popular PV780 with more power and memory. With its faster processor, this version of the full-color display adds more connectivity with Bluetooth and Wi-Fi capabilities. In addition, the flash storage for the PV780B has doubled to 8GB.


The full-featured, configurable display integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. The 1000-nit 7-inch screen can easily be viewed, even in full sunlight. The display’s bonded LCD and rugged design make it a perfect solution for all types of environments and applications.

Customization of the display can be accomplished quickly via graphical programming or scripting with the PowerVision Configuration Studio? software.

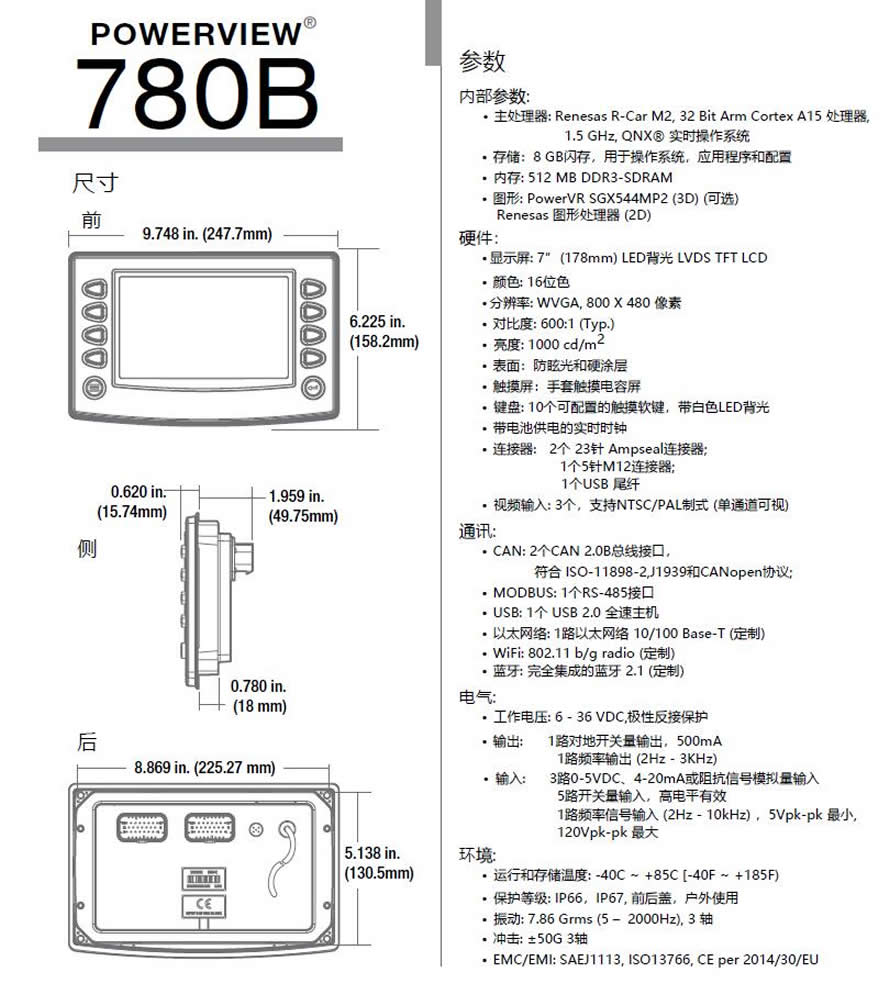

规格参数:

  • Computing
    • Processor: Renesas ? R-Car M2 with Arm ? Cortex ? -A15 dual-core processor @ 1.5 GHz (32-bit)
    • Operating System: QNX ? Realtime Operating System
    • Storage: 8 GB flash memory
    • RAM: 512 MB DDR3-SDRAM
    • Graphics: Renesas graphics processor
  • Display
    • Screen Size: 7 inches (178 mm)
    • Type: LVDS TFT LCD with LED backlight, 24-bit color
    • Resolution: 800?×?480 (WVGA)
    • Contrast Ratio: Typ. 600:1
    • Brightness: 1000 cd/m 2
    • Surface: Anti-glare
    • Touch Panel: Projected capacitive (PCAP) with glove touch
  • Hardware
    • Keypad: 10 tactile configurable soft keys with white LED backlight
    • Real Time Clock: Available with battery backup
    • Connectors:
      • (2) AMPSEAL 23 pin (main)
      • (1) M12 5 pin [Ethernet] (optional)
      • (1) USB pigtail
    • Video Input: (3) NTSC/PAL (single channel viewable)
  • Communication
    • CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
    • Serial: RS-485 serial (Modbus: master or slave)
    • USB: USB 2.0 full speed host
    • Ethernet: 1 X Ethernet 10/100 Base-T (optional)
    • Wi-Fi: 802.11 b/g radio (optional)
    • Bluetooth: Fully integrated Bluetooth 2.1, class 1 (optional)
  • Electrical
    • Operating Voltage: 6 – 36 VDC, reverse polarity protected
    • Outputs:
      • (1) 500 mA switched low-side
      • (1) Frequency output (2Hz – 3KHz)
    • Inputs:
      • (3) Analog 0 – 5 VDC, 4-20 mA, resistive, 10-bit resolution
      • (5) Discrete digital, active-high
      • (1) Frequency in (2Hz – 10kHz) 5V pk-pk min, 49V pk-pk max
  • Environment
    • Operating Temperature: -40?C to +85?C (-40?F to +185?F)
    • Storage Temperature: -40?C to +85?C (-40?F to +185?F)
    • Protection: IP66 and IP67, front and back, for outdoor use
    • Vibration: 7.86 Grms (5 – 2000Hz), 3 axes
    • Shock: ±50G in 3 axes
    • EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU



- HOW TO ORDER

Part Number Description Order Details
Part Number Description Order Details
78700630 PV780B: Non-Touch / Non-Connected Display
78700631 PV780B-T: Touch Non-Connected Display
78090098 Programming Kit, PV780 Accessories
78051181 Cover, PV780 Accessories
78001053 Bracket Kit (screws included) Accessories
78001055 Harness, Gray Connector, USB Accessories
78001056 Harness, Gray Connector, Flying Leads Accessories
78001057 Harness, Black Connector, Flying Leads Accessories
78001017 Harness, Black Connector, Development Accessories
78001018 Harness, Gray Connector, Development Accessories
78090069 Harness, PV750 Conversion, Power/CAN Accessories
78051180 Bezel, PV780 Accessories
78001295 Kit, Mounting Bracket, PV780 Accessories



For more information about this product, you can download the related literature here:
资料下载

- Sales Flier (1712046; updated 04/2017)
- PowerView Brochure (1712039; revision date - 03/2017)
