POWERVIEW 700 显示屏
Murphy PowerView 700是适用于恶劣环境的终极坚固显示屏
PowerView 700是一款全彩色7英寸可配置显示器，将重要的发动机、变速箱和诊断信息集成到易于阅读的操作员界面中。PV700具有IP69K等级的外壳、便于手套接触的电容式触摸屏和光学粘合的盖玻片，可提供卓越的阳光可见度，因此在全天候环境中倍受青睐。无按钮的现代设计使PV700紧凑耐用，适用于驾驶室内或室外应用，功率充足，可提高生产率、效率和控制。PV700的新功能是能够承载四个视频输入，并能够同时查看两个视频馈送。
PV700只能通过PowerVision Configuration Studio进行编程（有关详细信息，请参阅如何订购选项卡）。不包括图形界面，需要自定义编程。
PowerView Model PV700 Installation Manual
规格
计算
处理器：Renesas?R-Car M2带Arm?Cortex?-A15双核处理器@1.5 GHz（32位）
软件：QNX?实时操作系统
存储：8 GB闪存
内存：512 MB DDR3-SDRAM
图形：集成图形处理器
陈列
屏幕尺寸：7英寸（178毫米）
类型：LVDS TFT LCD，带LED背光，24位彩色
分辨率：800 x 480（WVGA）
对比度：典型。600:1
亮度：1000 cd/m2
表面：防眩光
触摸面板：带手套触摸的投射电容（PCAP）
硬件
实时时钟：支持电池备份
连接器：
（2） AMPSEAL 23针（主）
（1） M12 5针[以太网]（可选）
（1） M12 3针（可选）
（1） USB尾纤
（1） 天线连接器引线（可选）
视频输入：（4）NTSC/PAL（双视频解码器允许同时观看两个频道）
音频输出：
（2） 线路输出（可选）
（1） 超低音扬声器（可选）
表达
CAN：（2）符合ISO-11898-2的CAN 2.0B；J1939和专有信息
USB:USB 2.0全速主机
以太网：1 X以太网10/100 Base-T（可选）
Wi-Fi:802.11 b/g收音机（可选）
蓝牙：完全集成的蓝牙2.1，class 1（可选）
与电有关的
工作电压：6–36 VDC，反极性保护
输入：
（3） 模拟0–5 VDC，4-20 mA，电阻，10位分辨率
（5） 离散数字，高电平有效
（1） 频率输入（2Hz–10kHz）5V峰值峰值最小，120V峰值峰值最大
输出：
（1） 500 mA开关低压侧
（1） 频率输出（2Hz–3KHz）
环境的
工作温度：-40°C至+85°C（-40°F至+185°F）
储存温度：-40°C至+85°C（-40°F至+185°F）
防护等级：IP66和IP67，正面和背面，户外使用
振动：7.86 Grms（5–2000Hz），3轴
冲击：3轴±50G
EMC/EMI:SAE J1113、ISO 13766、CE（2014/30/EU）
Enovation Controls推出新的Murphy Powerview 700显示器
Enovation Controls宣布推出PowerView 700，这是Murphy PowerView系列高性能显示器中的一款7英寸边对边玻璃显示器。PV700具有IP69K等级的外壳、手套友好型电容式触摸屏和光学粘合的盖玻片，可提供卓越的阳光可见度，是恶劣环境下的终极坚固显示器。
无按钮的现代设计使PV700成为驾驶室内或室外应用的一个紧凑耐用的补充，具有完美的功率，可提高生产力、效率和控制。PV700的新功能是能够承载四个独立的视频输入，并同时观看两个实时feed。
Enovation Controls销售和应用工程（EMEA）经理Osas Imade表示：“我们很高兴能帮助我们的客户开始集成新的PV700，使运营商能够用他们的设备完成更多的工作。”。“简单、符合人体工程学的触摸控制对我们的许多客户来说都很重要，因此我们确保这款显示器能与戴手套的手配合使用。
我们还将其设计为在驾驶室或室外具有最佳的阳光可见度和防风雨性能，并具有IP69K防护等级。虽然我们的5英寸PV500是我们最紧凑的显示器，但7英寸PV700在紧凑的外壳中提供了增强的可视性和控制，使OEM有足够的空间容纳其他重要组件。”

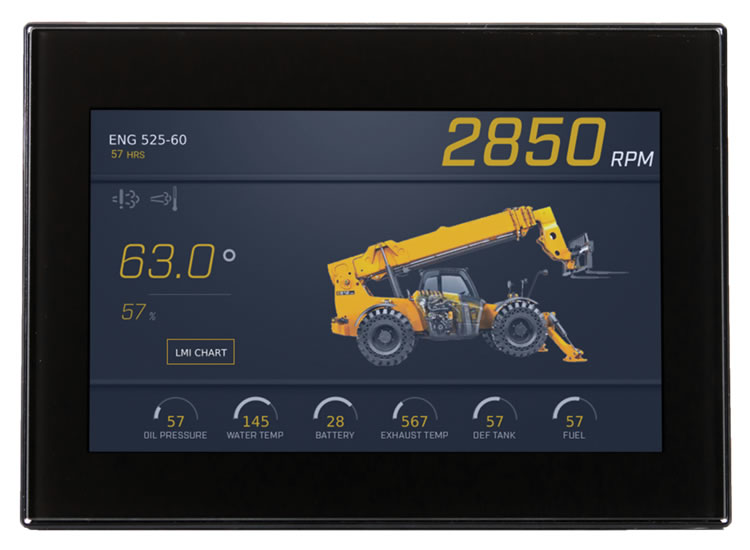

Powerview PV700
PV700由1.5GHz高速处理器驱动，经过优化，可以快速启动，可以无缝运行关键控制应用程序、惊人的图形、平滑过渡和无闪烁视频。PV700配有24位彩色800×480 LCD，图形生动。PV700还配备8GB内置闪存，因此用户不必在数据记录、图形、视频等方面妥协。通过两个标准AMPSEAL 23针连接、一个用于编程和导出数据的专用USB连接器和一个用于以太网的M-12 a编码连接器（可选），将PV700轻松集成到您的设备中。
PV700未预装应用程序就绪软件（设备仅包括引导加载程序）。为了使应用程序在显示屏上栩栩如生，集成商需要使用Enovation Controls功能强大的PowerVision Configuration Studio软件（4.0版）的最新版本，该软件只能通过SPARK software Manager获得。新版本使程序员可以充分利用内置的can消息库、快速部署库、视频叠加图形库以及更多包含的PowerVision应用程序。没有内部开发能力的用户可以利用Enovation Controls著名的配置和应用程序开发专业知识或Enovation control知识丰富的分销合作伙伴网络来开发有效的控制体验。
Specifications
Computing
Processor: Renesas? R-Car M2 with Arm? Cortex?-A15 dual-core processor @ 1.5 GHz (32-bit)
Software: QNX? Realtime Operating System
Storage: 8 GB flash memory
RAM: 512 MB DDR3-SDRAM
Graphics: Integrated graphics processor
Display
Screen Size: 7-inch (178 mm)
Type: LVDS TFT LCD with LED backlight, 24-bit color
Resolution: 800 x 480 (WVGA)
Contrast Ratio: Typ. 600:1
Brightness: 1000 cd/m2
Surface: Anti-glare
Touch Panel: Projected capacitive (PCAP) with glove touch
Hardware
Real Time Clock: Available with battery backup
Connectors:
(2) AMPSEAL 23 pin (main)
(1) M12 5 pin [Ethernet] (optional)
(1) M12 3 pin (optional)
(1) USB pigtail
(1) Antenna connector pigtail (optional)
Video Inputs: (4) NTSC/PAL (dual video decoders allow viewing two channels simultaneously)
Audio Outputs:
(2) Line Out (optional)
(1) Subwoofer (optional)
Communication
CAN: (2) CAN 2.0B according to ISO-11898-2; J1939 and proprietary messaging
USB: USB 2.0 full speed host
Ethernet: 1 X Ethernet 10/100 Base-T (optional)
Wi-Fi: 802.11 b/g radio (optional)
Bluetooth: Fully integrated Bluetooth 2.1, class 1 (optional)
Electrical
Operating Voltage: 6 – 36 VDC, reverse polarity protected
Inputs:
(3) Analog 0–5 VDC, 4-20 mA, resistive, 10-bit resolution
(5) Discrete digital, active-high
(1) Frequency in (2Hz–10kHz) 5V pk-pk min, 120V pk-pk max
Outputs:
(1) 500 mA switched low-side
(1) Frequency output (2Hz–3KHz)
Environmental
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Protection: IP66 and IP67, front and back, for outdoor use
Vibration: 7.86 Grms (5–2000Hz), 3 axes
Shock: ±50G in 3 axes
EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU
POWERVIEW 700
The Murphy PowerView 700 is the ultimate rugged display for tough environments.
The PowerView 700 is a full-color 7-inch configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. With an IP69K-rated enclosure, glove-friendly capacitive touch screen and an optically-bonded cover glass for superior sunlight visibility, the PV700 thrives in all-weather environments. The button-less modern design keeps the PV700 compact and durable for in-cab or exterior applications with the perfect amount of power to deliver increased productivity, efficiency and control. New for the PV700 is the ability to host four video inputs with the ability to view two video feeds simultaneously.
PV700 is programmable exclusively with PowerVision Configuration Studio (See How to Order tab for details). Graphic interface not included, custom programming required.
Enovation Controls launches new Murphy Powerview 700 display 0
Enovation Controls has announced the release of the PowerView 700, a 7in edge-to-edge glass display in the Murphy PowerView series of high-performance displays.
With an IP69K-rated enclosure, glove-friendly capacitive touch screen and an optically-bonded cover glass for superior sunlight visibility, the PV700 is the ultimate rugged display for tough environments.
The button-less modern design makes the PV700 a compact and durable addition to in-cab or exterior applications with the perfect amount of power to deliver increased productivity, efficiency and control. New for the PV700 is the ability to host four separate video inputs and view two live feeds simultaneously.
“We are excited to help our customers start integrating the new PV700 which enables operators to accomplish more with their equipment,” says Osas Imade, manager of sales and application engineering (EMEA), Enovation Controls. “Simple, ergonomic touch control is important to many of our customers, so we made sure that this display would work well with gloved hands.
We also designed it for great performance in a cab or outdoors with best-in-class sunlight visibility and weatherproofing with IP69K ingress protection. Although our 5-inch PV500 is our most compact display, the 7in PV700 provides enhanced visibility and control in a compact enclosure that allows OEMs enough room for other essential components.”
Powerview PV700
Powered by a 1.5GHz high-speed processor, the PV700 is optimised to boot-up quickly and can seamlessly run critical control applications, stunning graphics, smooth transitions and flicker-free video. Graphics are vivid on the PV700 with a 24-bit colour 800×480 LCD. The PV700 also comes equipped with 8GB of built-in flash memory so users don’t have to compromise on data logging, graphics, videos and more. Integrate the PV700 into your equipment is easy with two standard AMPSEAL 23-pin connections, a dedicated USB connector for programming and exporting data and an M-12 A-coded connector for Ethernet (optional).
The PV700 is not pre-loaded with application-ready software (unit includes bootloader only). To bring an application to life on the display, integrators will need to use the newest version of Enovation Controls’ powerful PowerVision Configuration Studio software (Version 4.0) which is available exclusively via SPARK Software Manager. The new version lets programmers can take full advantage of a built-in library for CAN messages, fast deployment, graphics-over-video overlay and many more included PowerVision applications. Users without in-house development ability can leverage Enovation Controls’ renowned configuration and application development expertise or Enovation Controls’ network of knowledgeable distribution partners to develop an effective control experience.
78090098 - Programming Kit
78051451 - Mounting Bracket Kit
78090069 - Power/CAN Wire Harness
78001299 - Audio/Video Harness, Download Harness Pinout
