20SS series shock switches CSS Series Shockswitch

The ATEX Series are electromechanical devices designed to protect equipment from damaging shock. These sensitive mechanisms detect excessive shock and shutdown the equipment before further damage occurs.

The ATEX Series are housed in a ATEX certified enclosure and can be used for applications requiring an execution of EEx-d-IIC-T6.

Features:

Shock and vibration protection
Adjustable sensitivity
Explosion proof case, approved to ATEX EN50014/50018, EEx-d-IIC-T6

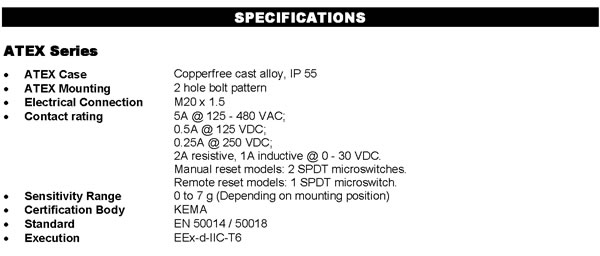

技术参数：
ATEX Case: Copperfree Cast Alloy (IP55)
Electrical Connection: M20 x 1.5
Contact Ratings:
5A @ 125 - 480 VAC;
0.5A @ 125 VDC;
0.25A @ 250 VDC;
2A resistive, 1A inductive @ 0 - 30 VDC.
Manual reset models:
2 SPDT microswitches.
Remote reset models:
1 SPDT microswitch.
Sensitivity Range: 0 to 7 g (depending on mounting position)
Operating Temperature: -40°C to +60°C
Certification Body: KEMA
Standard: EN 50014 / 50018 ATEX
Execution: EEx-d-IIC-T6
Shipping Weight: 3.5 kg
Shipping Dimensions:
250 8 250 8 250 mm

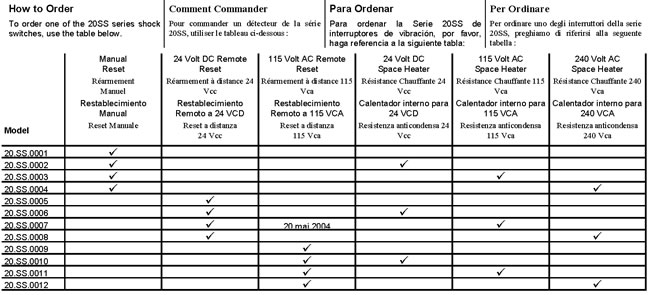

20SS series shock switches CSS Series Shockswitch model 20.SS.0001 . 20.SS.0002 . . 20.SS.0003 . . 20.SS.0004 . . 20.SS.0005 . 20.SS.0006 . . 20.SS.0007 . 20.SS.0008 . . 20.SS.0009 . 20.SS.0010 . . 20.SS.0011 . . 20.SS.0012 . .
