摩菲TM Series Hourmeters小时计


?2 in. (51 mm) diameter dial
?Tamperproof and environmentally sealed
?Mechanical counter – no battery needed to maintain elapsed time
?Reversed polarity protected
?Quartz-crystal time base for accurate long-term timekeeping
?Powered by 12 to 24 VDC


产品名称:TM Series Hourmeters小时计



Basic Models 6-Digits Hourmeters

Model
Bezel Type
TM4592 Bright Stainless Steel Bezel
TM4593 Black Stainless Steel Bezel
TM4594 SAE Bright Stainless Steel Bezel
TM4595 SAE Stainless Steel Black Bezel
5-Digits Hourmeter with Shock Ring Mounting
TM612/624

3-Hole Mount, Black Bezel

Specifications

Power Input: 12 to 24 VDC
Power Consumption: Less than 0.03 W @ 12 VDC; 0.4 W @ 24 VDC.
Accuracy: ± 0.02% over entire range.
Temperature Range: -40°F to 185°F (-40°C to +85°C).
Dial (Face Plate): White numerals (over black background).
Time Scale:
TM4592-95 models: 6-digits 99,999.9 hours;
TM612/624 models: 5-digits 9,999.9 hours.

Automatic recycle to zero.
Vibration Resistance: Withstands 10 to 75 Hz @ 1 to 8 G’s.
Case Material: Plastic.
Bezel: Stainless Steel.
Terminations: 1/4 in. (6 mm) male blade terminals.
TM4592/4595 Shipping Weight: 5 ozs. (140 g).
Shipping Dimensions: 3-1/8 x 3 x 3 in. (79 x 76 x 76 mm) approximately.
TM612/624 Shipping Weight: 8 ozs. (230 g).
TM612/624 Shipping Dimensions: 5 x 5 x 3-1/4 in. (127 x 127 x 83 mm) approx.

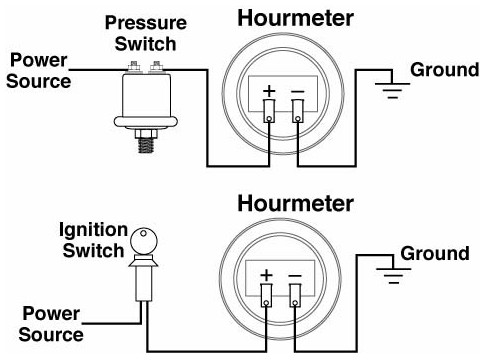

Typical Wiring
