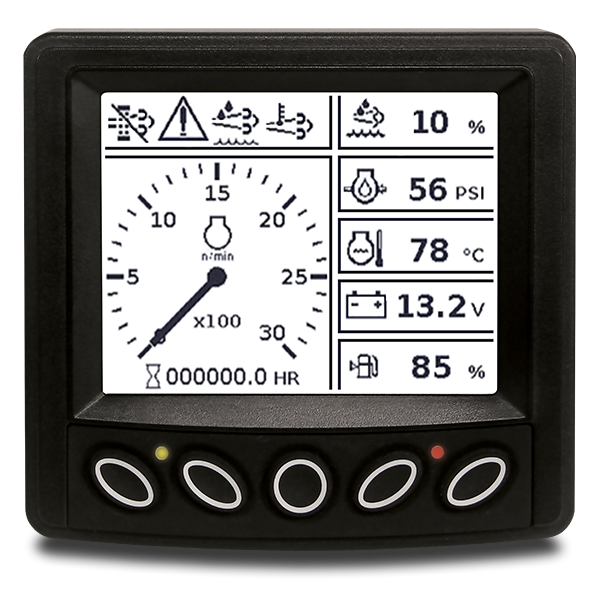

Murphy PV350 Display显示器 - 为电控和机械发动机专业打造的多功能可编程显示器


PV300系列显示器以性能稳定的多功能显示为特色,为电控发动机和机械发动机提供全方位的监控。 PV300系列有PV350和PV380两款显示器,能够将监控到的各种发动机和其他机器参数显示于易于读取的3.8寸QVGA的黑白液晶显示屏上。该显示器不但能处理复杂的发动机诊断,同时还能实现基本的发动机报警及停机控制。 用户可使用摩菲的专业编程软件Power Vision Configuration Studio为PV300系列显示器进行个性化设计,包括显示图像,个性化的显示布局,和自定义的各种参数。 The PowerView 350 display monitors multiple engine and machine parameters on an easy-to-read 3.8-inch (97mm) QVGA monochrome LCD, while handling sophisticated engine diagnostics and basic engine alarm/shutdown.

PowerView PV350 Engine and Diagnostic Display PDF Catalog

为电控发动机和机械发动机专业打造的多功能可编程显示器
适用于机械式及电控式发动机
易于使用的配置软件
兼容四阶段/欧四排放标准
可设置报警和停机控制
支持CNA J1939通讯协议
支持多种语言

The PV350 display has five tactile push buttons to quickly access a convenient menu. In addition, a backlit, heated graphic display and two LEDs indicate active-fault alarm or shutdown status.Murphy's optional PowerVision Configuration Studio, an intuitive personalization tool, can tailor basic graphics, designate screen layout and define custom parameters.

Tier 4 / Euro Stage IV Ready.

PowerView 300系列具有强大的多功能显示屏,可用于电控和机械发动机的高级监控。PV350和PV380显示器通过易读的3.8英寸(97毫米)QVGA单色LCD监视多种发动机和机器参数。显示器不仅可处理复杂的发动机诊断,还能实现基本的发动机报警/停机功能。用户可使用摩菲的专业编程软件PowerVision ConfigurationStudio 软件为PV300系列显示器进行个性化设计,包括自定义基本图形,设计屏幕布局,同时设置自定义参数。PV300 系列的全部规格参数请参考背面。



规格参数Technical Specifications

- Display: 3.8” (97 mm) QVGA (320 x 240 pixels); monochrome transflective LCD with white LED backlight, heater and real-time clock

- Viewing Angle: ± 55° horizontally; + 45°/ - 60° vertically

- Keys: 5 tactile pushbuttons

- Alarms: Red and amber warning LEDs; capable of set points-triggered output for external piezo buzzer or shutdown relay

- Inputs: (1) resistive analog

- Outputs: (1) 500 mA; switched low-side SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41

- Connectors: Deutsch DT series 6 pin; M12 for NMEA 2000 (micro-C)





Environmental Specifications

- Operating Voltage: 6-36 VDC

- Reversed Polarity: withstand reversed battery terminal polarity

- Operating Temperature: - 40°C to 85°C (- 40° to 185°F)

- Storage Temperature: - 40°C to 85°C (- 40° to 185°F)

- Vibration & Shock: 7.86g random vibe (5 - 2,000Hz) and ± 50g shock in 3 axis

- EMC / EMI:
2004/108/EC and 2006/95/EC directives
EN61000-6-4:2001 (emission)
EN61000-6-2:2001 (immunity)
EN 50121-3-2 and EN 12895

- Communications: (2) CAN 2.0B; second CAN port is NMEA 2000 isolated; J1939 and NMEA 2000 protocol; proprietary messaging

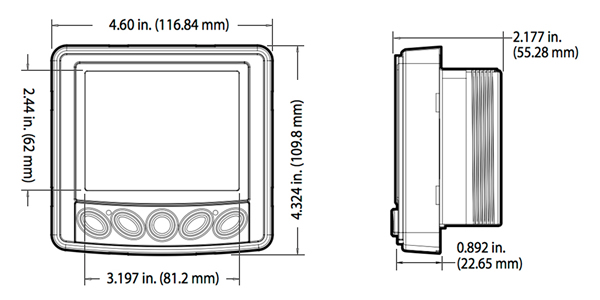

Dimensional Drawings连接尺寸

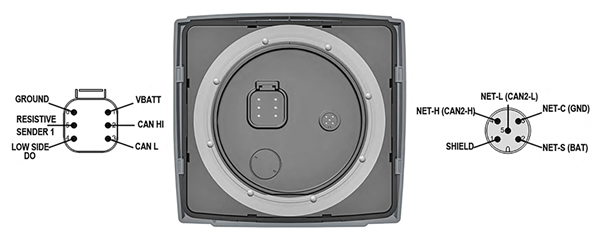

Pinout Configuration

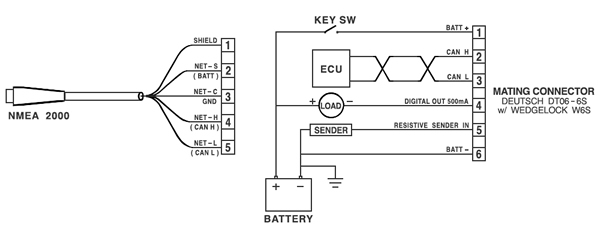

Wiring Diagram

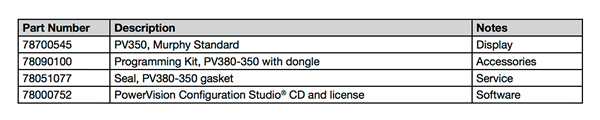

How To Order

Part Number Description Notes
78700545 PV350, Murphy Standard Display
78090100 Programming Kit, PV380-350 with dongle Accessories
78051077 Seal, PV380-350 gasket Service
78000752 PowerVision Configuration Studio? CD and license Software



为电控发动机和机械发动机专业打造的多功能可编程显示器
适用于机械式及电控式发动机
易于使用的配置软件
兼容四阶段/欧四排放标准
可设置报警和停机控制
支持CNA J1939通讯协议
支持多种语言

环境规格

·工作电压:6-36VDC,极性反接保护
·工作温度:-40~85℃(-40-~185°F)
·存储温度:-40~85℃(-40~185°F)
·防护等级:IP66和67
·抗震和抗冲击:任意震动,7.86Grms(5~2000Hz);±50G冲击(3轴)
·电磁兼容和抗电磁干扰:符合2004/108/EC和2006/95/EC directives
EN6 1000-6-4:2001(辐射)
EN6 1000-6-2:2001(干扰)
EN 501121-3-2和EN 12895
·SAE J1113/2, 4, 11, 12, 21, 24, 26, 41

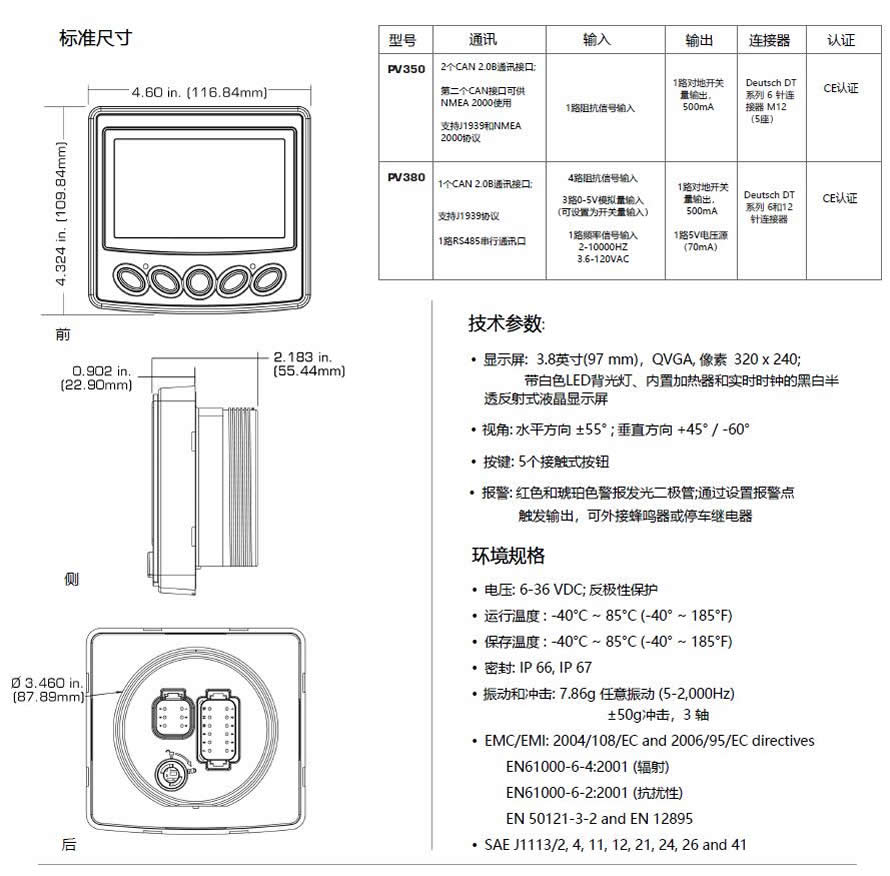

PV300系列显示器的技术规格请详见背面的规格描述:

型号

通讯协议

输入

输出

连接头

认证

PV350

2个CAN 2.08通迅接口;
第二个CAN口可提供NMEA2000使用
支持J1939和NMEA 2000协议

1路阻抗信号输入

1路对地开关量输出,500mA

德尔弛DT系列6针连接器M12(5座)

CE,E-Mark认证
ABS认证(可选)

PV380

1个CAN 2.08通讯接口;
支持J1939通讯协议
1路RS485串行通讯口

4路阻抗信号输入
3路O-5V模拟量输入(可设置成开关量输入)
1路频率信号输入2-10000Hz,3.6-120VAC

1路对地开关量输出,500mA
1路5V电压源(250mA)

德尔弛DT系列6针和12针连接器

CE,E-Mark认证



技术规格

·显示屏幕:3.8英寸/97mm,QVGA,320×240像素;黑白半透反射式液晶显示屏,带LED背光灯及内置加热器
·可视角度;水平可视±55°,垂直可视+45°/-60°
·按键:5个接触式按键
·报警:黄色LED代表一般故障报警,红色LED代表停机故障报警;通过设置报警点触发
输出,可外接蜂鸣器或停车继电器。
·平均故障间隔时间:50000小时


环境规格

·工作电压:6-36VDC,极性反接保护
·工作温度:-40~85℃(-40-~185°F)
·存储温度:-40~85℃(-40~185°F)
·防护等级:IP66和67
·抗震和抗冲击:任意震动,7.86Grms(5~2000Hz);±50G冲击(3轴)
·电磁兼容和抗电磁干扰:符合2004/108/EC和2006/95/EC directives
EN6 1000-6-4:2001(辐射)
EN6 1000-6-2:2001(干扰)
EN 501121-3-2和EN 12895
·SAE J1113/2, 4, 11, 12, 21, 24, 26, 41



- Speicification

  • Operating voltage : 6-36 VDC
  • Vibration and shock : 7.86 random vibe (5-2000Hz) and ±50g shock in three axes
  • Reversed polarity : Withstand reversed battery terminal polarity
  • Operating temperature : -40 to 185°F (-40 to 85°C)
  • Storage temperature : -40 to 185°F (-40 to 85°C)
  • Communications : (2) CAN 2.0B; second CAN port is NMEA 2000 isolated; J1939 and NMEA 2000 protocol; proprietary messaging
  • EMC/EMI :
    • 2004/108/EC and 2006/95/EC directives
    • EN61000-6-4:2001 (emission)
    • EN61000-6-2:2001 (immunity)
    • EN-50121-3-2 and EN 12895
  • Connectors : Deutsch DT series 6 pin; M12 for NMEA 2000 (micro-C)
  • Inputs : (1) resistive analog
  • Outputs : (1) 500 mA; switched low-side
  • SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41 display
  • Display : 3.8” (97 mm) QVGA (320x240 pixels); monochrome transflective LCD with white LED backlight and heater
  • Viewing angle : ±50° horizontally; +45°/-60° vertically
  • Keys : 5 tactile push buttons
  • Alarms : Red and amber warning LEDs; capable of set points-triggered output for external piezo buzzer or shutdown relay
  • Real-time clock : With Li-ion rechargeable battery backup





- 如何订货

Part Number Model/Description Notes
Part Number Model/Description Notes
78700616 PV350-R2, Murphy Standard Display
78700545 PV350, Murphy Standard Display
78090100 Programming Kit, PV380-350 with dongle Accessories
78051077 Seal, PV380-350 gasket Service
78000752 PowerVision Configuration Studio CD and license Software





产品资料下载

PV350-R2

PV350-R1
