前五名被低估的过程监控仪器
Top five most underrated process monitoring instruments


Murphy 品牌建立了其 82 年的声誉,为柴油、电动和机械发动机提供优质的过程监控仪器。Enovation Controls 仍然提供全系列的墨菲仪器,用于监测全球客户的压力、温度、液位、超速、时间和振动。它们可能不像uControl移动机器控制器那样新颖和令人兴奋,但这些仪器对于机械发动机应用至关重要。我们与长期担任 Murphy 销售经理的Paul Kasishke进行了交谈,以了解他被低估的 5 种过程监控仪器。





#5 - EL150 Level Swichgage

EL150 是经典的液位开关选项,具有多种发动机监控用途。L150/EL150K1 的主要用途是发动机冷却系统、缓冲罐或膨胀罐、冷凝器散热器或汽相系统、加压或大气系统。该液位开关仪表还可用于监测润滑油、液压油或柴油燃料储罐,并在预定的低液位时激活警报和/或关闭。


Paul 说: “EL150 系列液位开关也用于机械柴油或火花点火发动机,用于脱水、灌溉、污水提升站以及发电石油和天然气应用。这款 Swichgage 非常适合任何需要液位监测的发动机。”






#4 - Tattletale 报警器

我们的 Tattletale 报警器会指示机械发动机的受监控功能何时发生故障,并告诉您发生故障并导致警报或停机的具体功能。我们的信号器可以在保护您的发动机方面发挥巨大作用,以提醒您发动机出现问题,以确保您的设备和操作员的安全。

Paul 说: “我们的 tattletale 报警器还用于机械、柴油或火花点火发动机,用于脱水、灌溉、污水提升站、发电石油和天然气应用。我们的信号器可用于任何需要更高电流触点才能打开导致停机的发动机或应用。”




#3 - AT03069 油门控制器

AT03069 专为自动控制发动机转速以满足系统需求而开发。该设备为您节省燃料、发动机磨损、马力和劳动力。

Paul 说: “AT03069 通常用于机械、柴油或火花点火发动机,用于脱水、灌溉、污水提升站、发电和石油和天然气应用,这些应用需要手动或自动节流发动机。”




#2 - PSBTSB压力开关和温度开关

PSB 开关是用于关键压力点的直接安装开关。它有一个限位触点,可用于激活警报、启动指示灯或关闭设备。与 PSB 开关类似,但负责监控温度,TSB 开关是用于温度感应的直接安装开关。它有一个限位触点,可用于激活警报、启动指示灯或关闭设备。



保罗说: “这些开关可用于机械或电子、柴油或火花点火发动机,用于脱水、灌溉、污水提升站、发电石油和天然气应用。任何需要压力或温度警告或停机的发动机,无需仪表盘即可查看参数范围。”




#1 – Mechanical Swichgage 和 Murphygage 仪器

我们的机械式 Swichgage 和 Murphygage 仪器提供温度、压力、压差和真空压力的过程监控。Swichgage 仪表是带有内置电气开关的高质量隔膜驱动千分表。用于跳闸报警和/或停机装置,指针既作为指示器又作为一个开关极,当它接触可调限位触点时完成电路。也可提供不带触点的紧凑型仅仪表型号(称为 Murphygage 仪器)。Murphy 仪表易于阅读、易于安装、经过工作测试和操作员认可。



保罗说: “仪表是任何机械发动机系统中被低估的项目。我们的压力表具有过程连接和端口以及由黄铜加工而成的隔膜室,而不是外壳的一部分。可调限位触点可根据您的应用要求轻松配置。”


不确定您是否需要仪表或显示器?单击此处获取选择适合您的应用程序的指南。

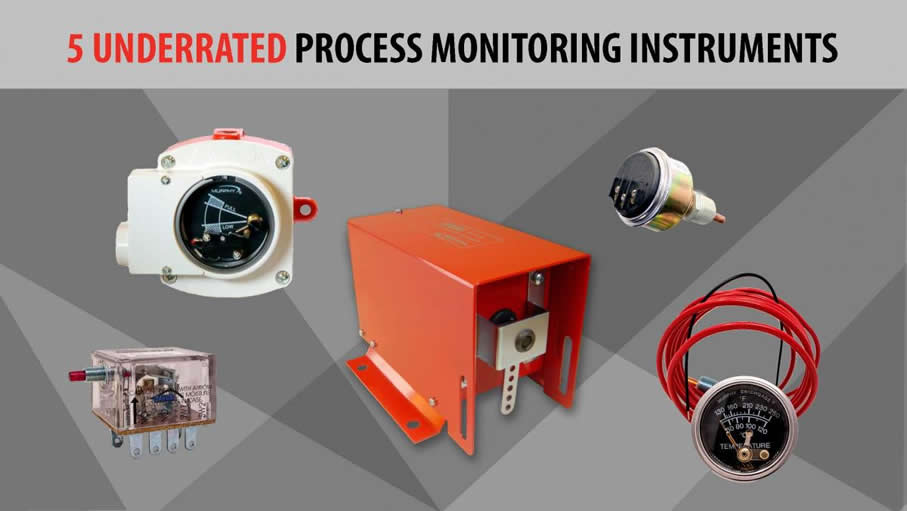

THE TOP FIVE MOST UNDERRATED PROCESS MONITORING INSTRUMENTS

The Murphy brand built its 82-year reputation providing quality process monitoring instruments for diesel, electric and mechanical engines. Enovation Controls still provides a complete line of Murphy instruments for monitoring pressure, temperature, liquid level, overspeed, time and vibration that are popular with customers around globe. They may not be as new and exciting as uControl? mobile machine controllers, but these instruments are essential for mechanical engine applications. We talked with long-time Murphy sales manager Paul Kasishke to get his top 5 most underrated process monitoring instruments.



#5 - EL150 Level Swichgage

The EL150 is a classic level switch option and has a variety of engine monitoring purposes. The primary use of the L150/EL150K1 is for engine cooling systems, surge or expansion tanks, condenser radiator or vapor phase systems, pressurized or atmospheric systems. This level Swichgage instrument can also be used to monitor lube oil, hydraulic fluid or diesel fuel reservoirs and activates alarms and/or shut down at a predetermined minimum level.

Paul says: “The EL150 Series Level Swichgage is used on mechanical diesel or spark ignited engines in dewatering, irrigation, sewage lift stations, and power generation oil and gas applications as well. This Swichgage is perfect for any engine that needs fluid level monitoring.”

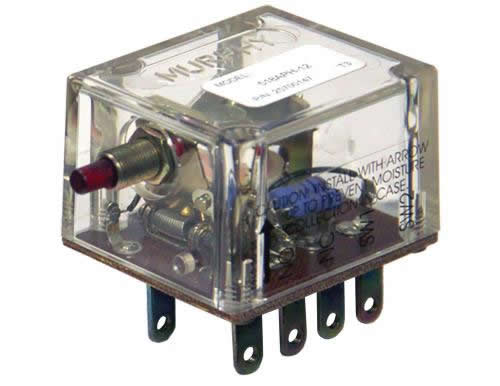

#4 – TATTLETALE Annunciators

Our tattletale annunciators indicate when a monitored function of a mechanical engine fails and tells you the specific function that failed and leads to an alarm or shutdown. Our annunciators can make a huge difference in protecting your engine to alert you of issues with your engine to ensure safety for your equipment and the operator.

Paul says: “Our tattletale annunciators are used on mechanical, diesel or spark ignited engines in dewatering, irrigation, sewage lift stations, power generation oil and gas applications as well. Our annunciators can be used on any engine or application that requires a higher current contact to open cause a shutdown.”

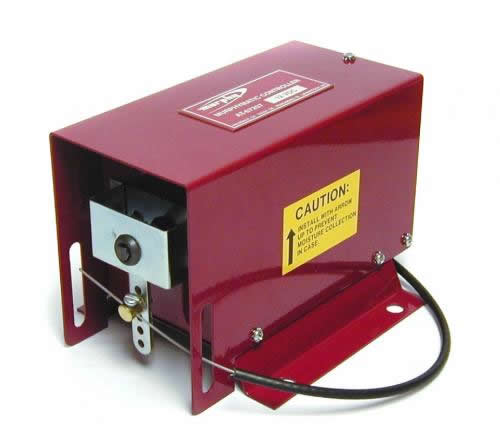

#3 - AT03069 Throttle Controller

The AT03069 is developed specifically to automatically control engine speed to meet system demand. This device saves you on fuel, engine wear, horsepower and labor all in one.

Paul says: “The AT03069 is usually used on mechanical, diesel or spark ignited engines in dewatering, irrigation, sewage lift stations, power generation and oil and gas applications that need a way to manually or automatically throttle the engine.”

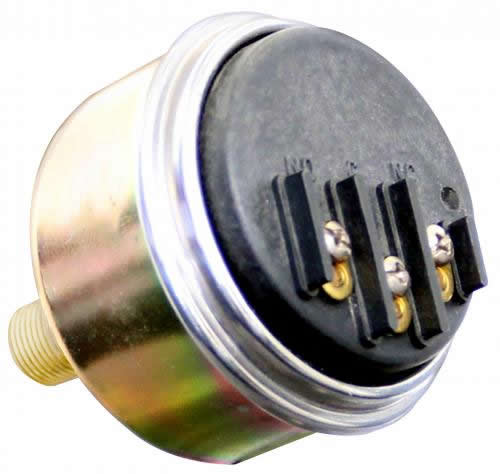

#2 - PSB and TSB

The PSB switch is a direct-mount switch for critical pressure points. It has one limit contact that can be used to activate an alarm, actuate indicator lights or shutdown equipment. Like the PSB switch, but responsible for monitoring temperature, the TSB switch is a direct-mount switch for temperature sensing. It has one limit contact that can be used to activate an alarm, actuate indicator lights or shut down equipment.

Paul says: “These switches can be used on mechanical or electronic, diesel or spark ignited engines in dewatering, irrigation, sewage lift stations, power generation oil and gas applications as well. Any engine that needs pressure or temperature warnings or shutdown without the gauge dial to view the range of the parameter.”

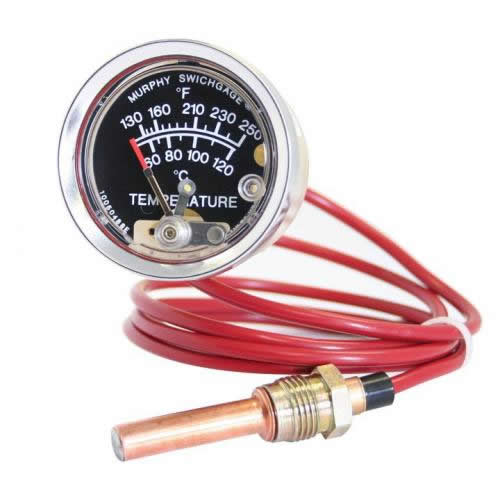

#1 – Mechanical Swichgage and Murphygage Instruments

Our mechanical Swichgage and Murphygage instruments offer process monitoring for temperature, pressure, differential pressure and vacuum pressure. Swichgage instruments are high-quality diaphragm-actuated, dial gauges with built-in electrical switches. Used for tripping alarms and/or shutdown devices, the pointer acts as both an indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Compact, gauge-only models without contacts (known as Murphygage instruments) are also available. Murphy gauges are easy-to-read, easy-to-install and work-tested and operator-approved.

Paul says: “Gauges are the most underrated item for any mechanical engine system. Our gauges feature a process connection and port as well as a diaphragm chamber machined from brass and not part of the case. The adjustable limit contact allows easy configuration to your application’s requirements.”


Not sure if you need gauges or a display? Click here for guide to choosing what’s right for your application.
